In the field of electronic equipment repair, the rectifier bridge is like the "heart" of the power system, undertaking the crucial mission of converting alternating current (AC) to direct current (DC). Industry data shows that over 40% of power supply failures are related to rectifier bridge malfunctions, but less than 30% of repair personnel truly possess professional testing skills. This article combines technical white papers from manufacturers such as Texas Instruments and STMicroelectronics with the practical experience of frontline repair engineers to create a "four-step testing method" for ordinary users, making the testing of complex electronic components readily accessible.

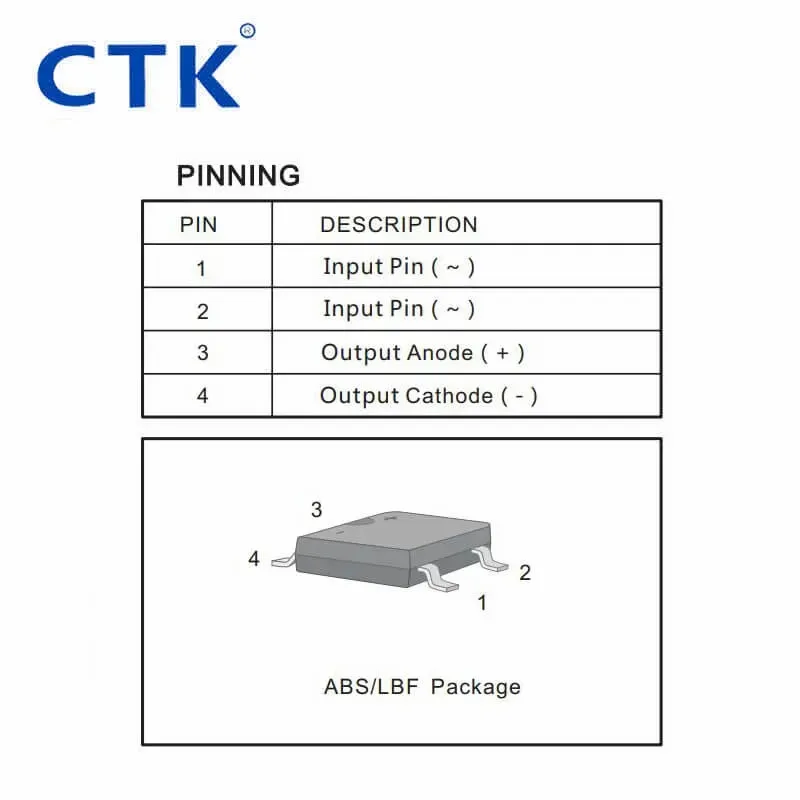

Basic Understanding: The "Blood Circulation" Principle of the Rectifier Bridge A rectifier bridge consists of four diodes, acting like four "one-way valves," allowing current to flow only in a fixed direction. Taking the KBPC3510 rectifier bridge as an example, its internal structure uses a "田" (field) arrangement, with AC input from the "~" terminal and DC output from the "+" and "-" terminals. Understanding this "current redirection" principle is the first step in testing.
Under normal operating conditions, the voltage drop across the rectifier bridge is approximately 1.1V, equivalent to the "toll" paid when current passes through the "tollbooth." If the voltage difference between the input and output terminals measured with a multimeter exceeds 1.5V, it indicates a congestion at the "tollbooth," suggesting a possible component malfunction.
Four-Step Testing Method: A Comprehensive Diagnosis from Appearance to Performance
Step 1: Visual Inspection
Pick up the rectifier bridge and begin with visual inspection. A normal component's leads should be bright and new, without oxidation or blackening. If "copper oxide" is found on the leads, resembling rusty nails, it indicates the component may be damp or aged. In this case, use a magnifying glass to examine the package; if cracks or bulges are found, it's like finding a "hemangioma," requiring immediate replacement.
Step 2: Resistance Measurement – Diode Characteristic Verification
A rectifier bridge is essentially a combination of four diodes; the key to testing is understanding this. Set the multimeter to diode mode, connect the red probe to the "+" terminal, and then connect the black probe to the "~" terminals sequentially. A voltage drop of approximately 0.5V should be measured, similar to measuring stable systolic blood pressure with a blood pressure monitor. If "OL" or a voltage drop of 0% appears, it indicates the corresponding diode's "heart valve" is damaged. Step 3: In-Circuit Testing – Performance Evaluation in a System Environment
Direct testing on the circuit board is like performing an electrocardiogram (ECG) on a patient. Set the multimeter to DC voltage mode, connect the red probe to the positive output terminal, and the black probe to the negative terminal. After powering on, a normal rectifier bridge should output 1.414 times the AC input voltage. If the output voltage is less than 1.3 times, it indicates insufficient "heart pumping capacity" of the component.
Step 4: Load Testing – Stress Testing Under Extreme Conditions
Connect a dummy load to the rectifier bridge, like conducting a "physical fitness test" on an athlete. Using a 100W light bulb as the load, measure the output voltage after powering on. A normal component should be able to stably output the rated voltage. If the voltage fluctuates wildly, it indicates a hidden fault in the component's "heart."
Typical Cases: Learning from Practical Experience
Case 1: No Output from Switching Power Supply
A certain brand of induction cooker experienced a complete lack of response. Testing revealed a 300V DC voltage at the rectifier bridge input, but the output voltage was 0. A four-step testing method revealed that one of the diodes was leaking in reverse. After replacing the rectifier bridge, the equipment returned to normal, much like performing a "heart bypass" surgery on a patient.
Case Two: Low Output Voltage
A computer power supply was outputting only 18V, far below the standard 24V. In-circuit testing revealed a rectifier bridge voltage drop of 2.1V, significantly exceeding the normal value. Further disassembly revealed "cold solder joints" inside the component, similar to "blocked blood vessels." After resoldering, the voltage returned to normal.
Common Testing Misconceptions: Avoiding Three Major Cognitive Traps
1. Blindly Believing in "In-Circuit Testing": Some repair personnel draw conclusions based solely on in-circuit testing, like prescribing medicine based on mere observation. Accurate diagnosis requires offline testing.
2. Ignoring Temperature Effects: In high-temperature environments, diode voltage drops can decrease by 0.1-0.2V. Ambient temperature must be considered during testing, just as environmental interference must be eliminated when measuring a patient's temperature.
3. Confusing Model Parameters: The withstand voltage and current parameters of different rectifier bridge models vary greatly. Before testing, the datasheet must be consulted, just as a doctor must understand the various indicators on a lab report.
Conclusion: Ensuring Every Component is "Healthy and Ready for Use"
The essence of rectifier bridge testing lies in establishing a four-dimensional testing system: "Appearance-Characteristics-System-Limits." From grasping the key characteristic of diodes to building a system-level testing mindset, each step embodies the philosophical wisdom of electronic repair. Mastering this four-step testing method not only improves repair efficiency but also cultivates the systemic diagnostic thinking of an "electronic doctor."
A true repair expert is not defined by the number of components they can replace, but by their ability to accurately determine which components truly need replacement.
