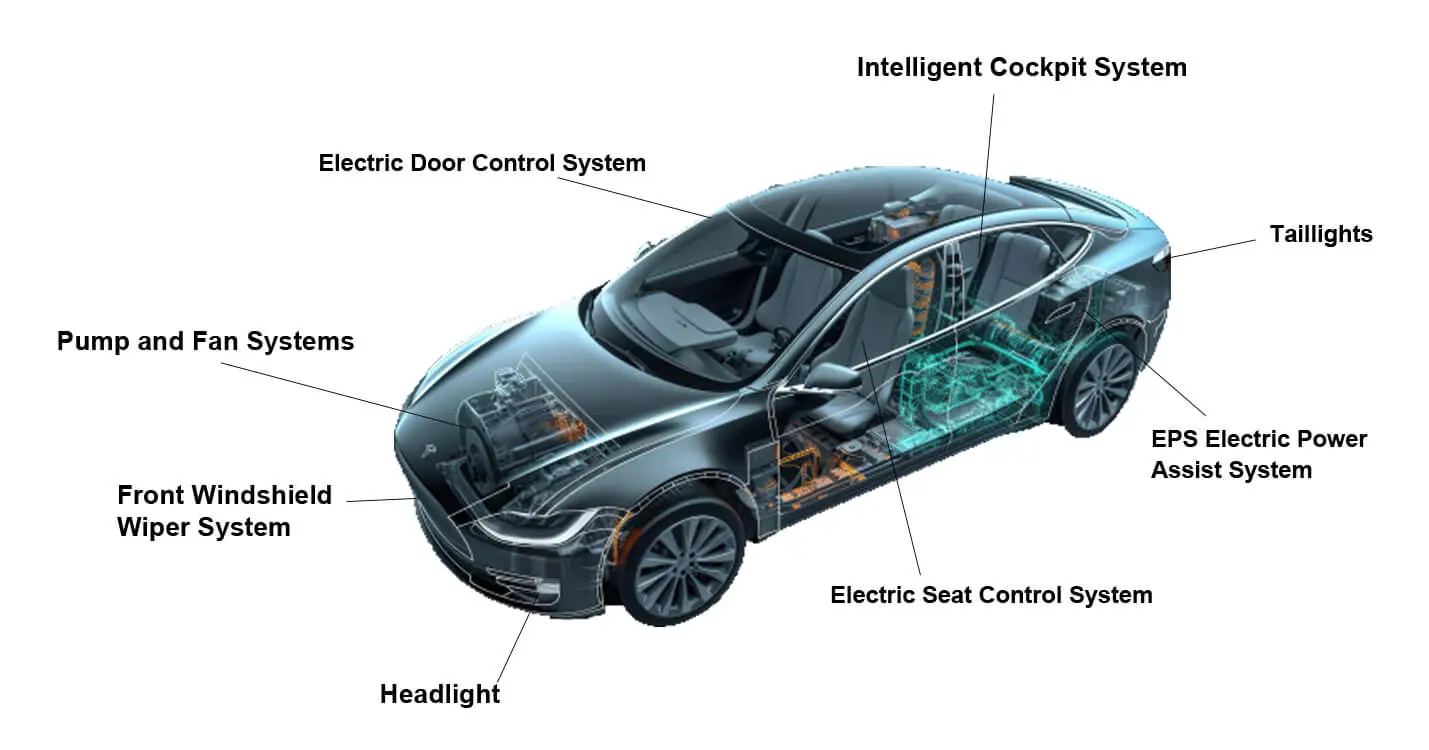

Automotive Electronics

● Driving Recorder

A: Power supply LDO: 6230 Series, 6232 Series, 6205 Series, 6330 Series
B: Reference Voltage: TL431 Series
C: General-purpose diodes and transistors: TKS9014, 2SC2983, SS34, TK1N4148 Series

D: Switching MOSFET: TKMP2305, TKMP3401, 2SK3019

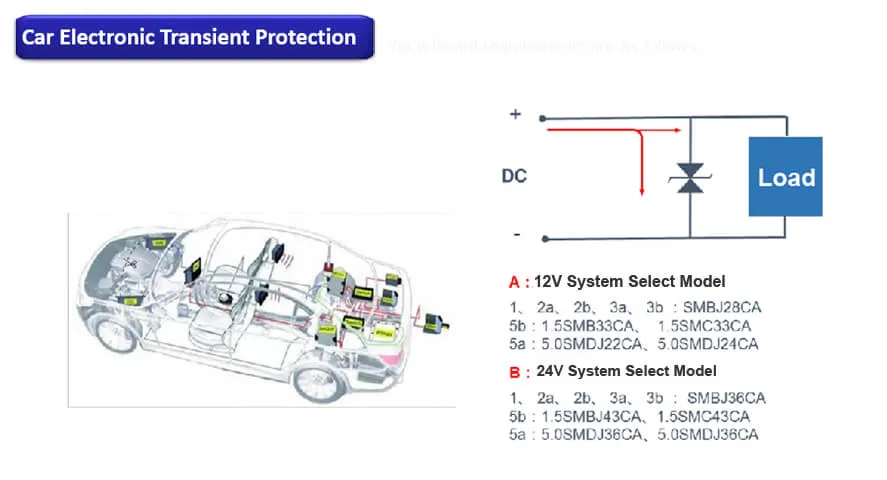

● Car Electronic Transient Protection

According to the ISO-7637-2 standard, the main transient shocks of automotive electronics can be simulated using 1, 2a/2b, 3a/3b, and 5a/5b waveforms.

The commonly used products corresponding to the relevant requirements are as follows.
Recommended Part Numbers:

A: 12V System Select Model: 1,2a,2b,3a,3b: SMBJ28CA; 5b: 1.5SMB33CA, 1.5SMC33CA; 5a: 5.0SMDJ22CA, 5.0SMDJ24CA

B: 24V System Select Model: 1,2a,2b,3a,3b: SMBJ36CA; 5b:1.5SMBJ43CA, 1.5SMC43CA; 5a: 5.0SMDJ36CA, 5.0SMDJ36CA

● Headlight

Recommended Part Numbers:

A: MOSFETs：PDFN3.3*3.3, PDFN5*6, TKMP2309A,TKMN2310A....

B: TVS：P6SMBJ24CA/28CA

C: ESD: TESDB15D3, TESDB24D3

D: Switching Diode: 1N4148WS, BAS16W, BAS21

E: Digital Transistor: DTC114EUA, DTC143EE, DTC124EUA

● Electric Seat Control System

Recommended Part Numbers:

A: MOSFETs: TKMN3400A, TKMP3401A, TK2N7002K, PDFN3.3*3.3, PDFN5*6

B: TVS: SMAJ Series: 22/24/28/33CA; SMBJ Series: 28/30/33/36CA; SMCJ Series: 26/28/30/33/36CA

C: ESD: TESDB24T2B, TESDB15D3, TESDB24D3

D: Switching Diode: BAV21WS, 1N4148W, 1N4448W; BAS316, BAV21W

E: Digital Transistor: DTC114YUA

F: SBD: BAT54WS


● Electric Door Control System

Recommended Part Numbers:

A: ESD: TESDB24T2B, TESDU24T2B; TESDB15D3, TESDB24D3

B: Switching Diode: BAS21, BAV70; 1N4148W, 1N4148S

● Pump and Fan Systems

Recommended Part Numbers:

A: TVS: P6SSMBJ24CA/28CA

B: Zener Diode: MMSZ5248BS, MMSZ5256B; BZT52C16


● Front Windshield Wiper System

Recommended Part Numbers:

A: MOSFETs: N-MOS|(40V)PDFN5*6

B: ESD: TESDB24T2B; TESDB15D3, TESDB24D3

C: Switching Diode: BAV21WS

D: Transistor: BC817-40

E: Zener Diode: AD-BZX84C15, BZT52B5V1S

● Intelligent Cockpit System

Recommended Part Numbers:

A: MOSFETs: TKMN2310A, TKMP3401A, TK2N7002K; PDFN3.3*3.3, PDFN5*6

B: ESD: SOT-23 Package series: 5V/24V/36V; SOT-23-6L Package:5V; SOT-323 Package:5V; SOD-323 Package series: 3V3/5V/15V/24V/36V; SOD-523 Package series: 24V/36V

C: Switching Diode: 1N4148W

D: Zener Diode: BZT52C27, BZT52C18S

E: SBD: BAT54WS, RB160M-40, TKB5819WS

F: Digital Transistor: DTC123JCA, DTC124ECA
G: Transistor: BC817-40, BC807-40, BCP53-16, BC847B, TKMMBT3906

● EPS Electric Power Assist System

Recommended Part Numbers:

A: MOSFETs: PDFN5*6

B: TVS: SMCJ26CA

C: ESD: TESDB24T2B

D: Switching Diode: 1N4148WS, BAV99

E: Zener Diode: BZT52C15, BZT52C13S
F: Transistor: BC817-40, BC807-40

● Taillights

Recommended Part Numbers:

A: MOSFETs: TKMP2309A, TKMN2310A, TKMN3400A, TK2N7002K, TKMP3401A

B: Transistor: TKMMBT3904, MMBTA06, MMBTA55; BCP56-10, BCP53-10; BC857B, BC817-40, BC807-40

C: Zener Diode: MMSZ5231B/39B, BZX84C5V1/16

D: TVS: P4SMAJ43CA/28CA, P6SMBJ43CA/28CA

E: ESD: TESDB24T2B, TESDB05D3
