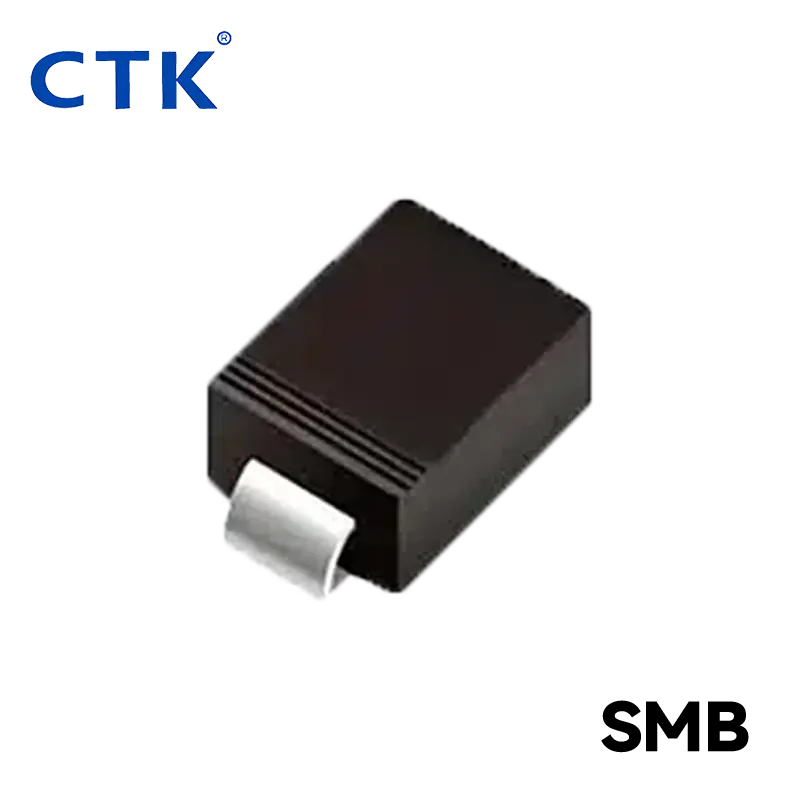

CTK SMB Rectifier Diodes Surface Mount General Purpose Silicon Rectifier - Package-Specific Rectifier Diode Supplier
Products Description
CTK SMB Rectifier Diodes Surface Mount General Purpose Silicon Rectifier is written for buyers comparing a real SMB package choice, not just a renamed catalog page. Its positioning centers on larger SMT package than SMA for more comfortable surge and dissipation design, with emphasis on AC-DC conversion and practical assembly review. Typical users include engineers stepping up from SMA when the layout allows more package area. Confirm exact electrical limits in the datasheet before final approval.
| Part Number | I(AV) | VRRM | IR | Package | MPQ |
| S2ABF | 2 | 50 | 5 | SMBF | 3000 |
| S2BBF | 2 | 100 | 5 | SMBF | 3000 |
| S2DBF | 2 | 200 | 5 | SMBF | 3000 |
| S2GBF | 2 | 400 | 5 | SMBF | 3000 |
| S2JBF | 2 | 600 | 5 | SMBF | 3000 |
| S2KBF | 2 | 800 | 5 | SMBF | 3000 |
| S2MBF | 2 | 1000 | 5 | SMBF | 3000 |
| S3ABF | 3 | 50 | 5 | SMBF | 3000 |
| S3BBF | 3 | 100 | 5 | SMBF | 3000 |
| S3DBF | 3 | 200 | 5 | SMBF | 3000 |
| S3GBF | 3 | 400 | 5 | SMBF | 3000 |
| S3JBF | 3 | 600 | 5 | SMBF | 3000 |
| S3KBF | 3 | 800 | 5 | SMBF | 3000 |
| S3MBF | 3 | 1000 | 5 | SMBF | 3000 |
| S5ABF | 5 | 50 | 5 | SMBF | 3000 |
| S5BBF | 5 | 100 | 5 | SMBF | 3000 |
| S5DBF | 5 | 200 | 5 | SMBF | 3000 |
| S5GBF | 5 | 400 | 5 | SMBF | 3000 |
| S5JBF | 5 | 600 | 5 | SMBF | 3000 |
| S5KBF | 5 | 800 | 5 | SMBF | 3000 |
| S5MBF | 5 | 1000 | 5 | SMBF | 3000 |
| S2AB | 2 | 50 | 5 | SMB | 3000 |
| S2BB | 2 | 100 | 5 | SMB | 3000 |
| S2DB | 2 | 200 | 5 | SMB | 3000 |
| S2GB | 2 | 400 | 5 | SMB | 3000 |
| S2JB | 2 | 600 | 5 | SMB | 3000 |
| S2KB | 2 | 800 | 5 | SMB | 3000 |
| S2MB | 2 | 1000 | 5 | SMB | 3000 |
| S3AB | 3 | 50 | 5 | SMB | 3000 |
| S3BB | 3 | 100 | 5 | SMB | 3000 |
| S3DB | 3 | 200 | 5 | SMB | 3000 |
| S3GB | 3 | 400 | 5 | SMB | 3000 |
| S3JB | 3 | 600 | 5 | SMB | 3000 |
| S3KB | 3 | 800 | 5 | SMB | 3000 |
| S3MB | 3 | 1000 | 5 | SMB | 3000 |
Features / Advantages
- Package Role: SMB is used here for larger SMT package than SMA for more comfortable surge and dissipation design, giving this page a different selection reason from neighboring packages.
- Circuit Fit: Supports AC-DC conversion in industrial adapters, appliance boards, and related assemblies where the package outline matters.
- Selection Check: Review datasheet values for the required voltage, current, leakage, capacitance, recovery, or thermal limits before release.
- Assembly Context: The package choice is relevant to placement density, solder joint access, inspection method, and production handling.
- Procurement Value: CTK can support sample verification, stable marking, and wholesale packaging for repeat production.
- Quality Control : Manufacturing checks focus on electrical consistency, package appearance, solderability, and compliance documentation.
Reliability and Certification
CTK reviews SMB Rectifier Diodes Surface Mount General Purpose Silicon Rectifier as a distinct SMB product line. Inspection covers package marking, solderability, visual quality, and final electrical screening. For Rectifier Diode selection, customers should compare AC-DC conversion, forward conduction, package footprint, and thermal or signal constraints against the datasheet and application board. This keeps engineering review grounded in actual use rather than generic product wording.
Applications
- Industrial adapters: The SMB outline is useful when AC-DC conversion must fit the available board area.
- Appliance boards: Designers can place the device according to package clearance, routing, and thermal needs.
- Lighting supplies: Suitable for products where forward conduction and repeatable assembly are both important.
- Communication power modules: Helps purchasing teams keep a consistent CTK source while matching the physical footprint.
- Battery chargers: A practical option when the circuit needs surge planning without changing the broader design architecture.
FAQ
Q: What makes SMB Rectifier Diodes Surface Mount General Purpose Silicon Rectifier different from nearby CTK package pages?
A: The main difference is the SMB package role: larger SMT package than SMA for more comfortable surge and dissipation design. That affects board space, assembly handling, and the type of products where the device is most convenient.
Q: Which applications usually fit this series?
A: It is commonly reviewed for industrial adapters, appliance boards, lighting supplies, communication power modules, especially when engineers need AC-DC conversion with a package that matches the layout.
Q: What should be checked before ordering samples?
A: Check the datasheet for the electrical limits required by your design, then confirm pad layout, package height, thermal path, and production packaging.
Q: Can CTK help compare this option with another package?
A: Yes. CTK can support package comparison, sample planning, and wholesale supply discussion when customers are choosing between similar product families.
About CTK
CTK supplies discrete semiconductors with attention to package-level selection, not only product-family keywords. The SMB Rectifier Diodes Surface Mount General Purpose Silicon Rectifier page is now positioned around larger SMT package than SMA for more comfortable surge and dissipation design, giving engineers and buyers clearer reasons to choose this SMB option within the Rectifier Diode portfolio.
